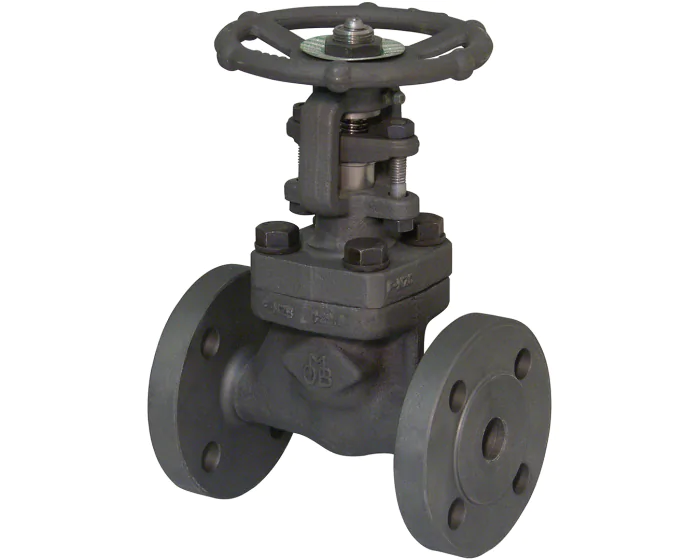

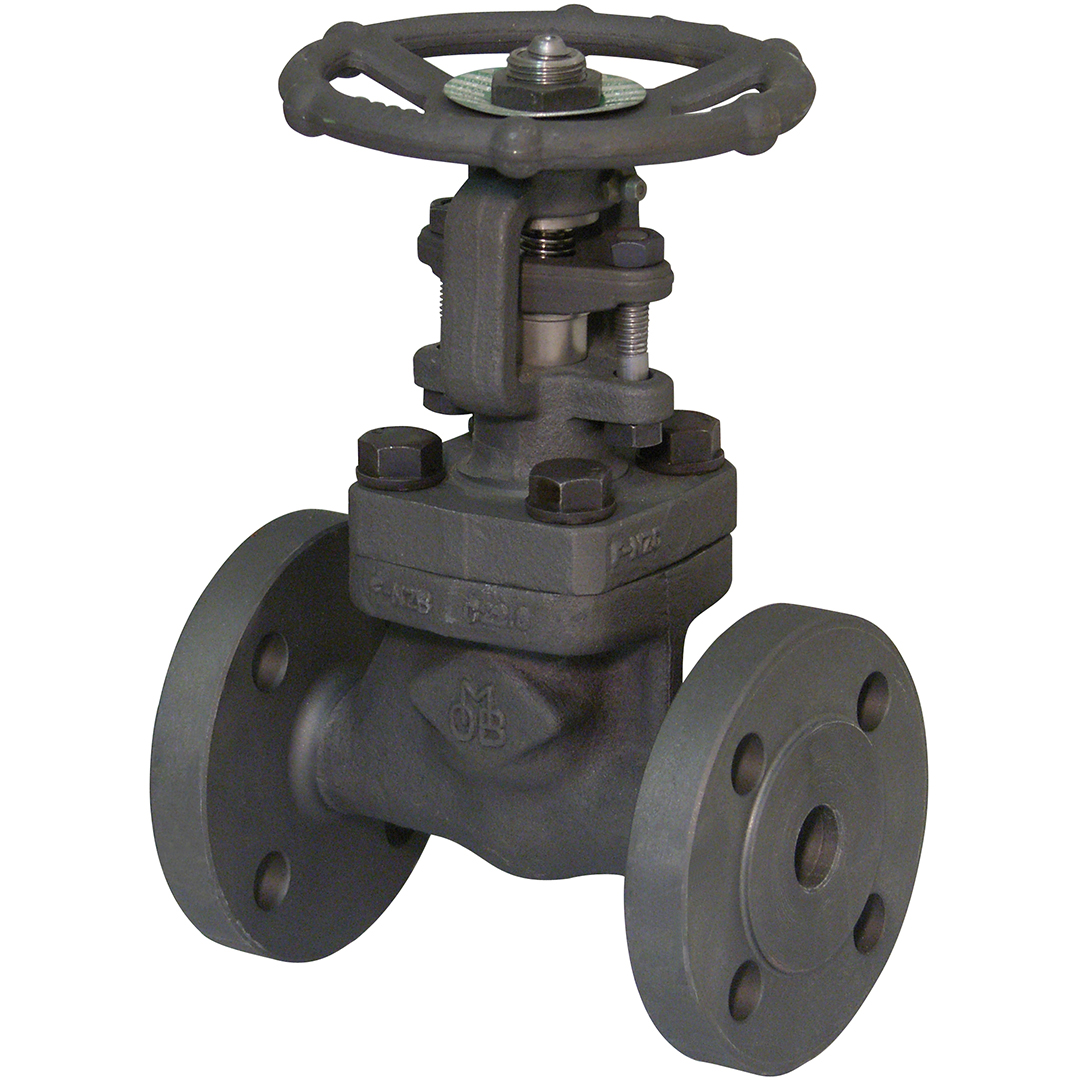

The series 131 flanged gate valve in forged steel A105N, RF Class 300, PN50, TRIM 5, with bolted bonnet and standard bore for the oil, steam and high pressure industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Carbon steel ASTM A105N |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| TRIM | TRIM 5 |
| EN face-to-face standard | EN 558 Series 4 |
| ASME face-to-face standard | ASME B16.10 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Bolted |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 410 |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 140.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 10 |
| Body material | Carbon steel ASTM A105 N |
| Gate material | Stainless steel ASTM A182 F6a stellited |
| Bore | Standard |
| Packing gland | Yes |
| PS (bar) | 50 |
| Connections | Flanged #300 PN50 |
| Seats | Stainless steel ASTM A276 Tp 410 stellite |
| TS max (°C) | 425 |
| TS min (°C) | -29 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
| Main product colour | Black |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #300 PN50 Carbon steel ASTM A105 N Standard DN15 - 1/2'' | 131015 | S1007375 |
€157.49
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel ASTM A105 N Standard DN20 - 3/4'' | 131020SF | S1007376 |
€176.64
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel ASTM A105 N Standard DN25 - 1'' | 131025SF | S1007377 |
€222.66
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel ASTM A105 N Standard DN40 - 1''1/2 | 131040SF | S1007378 |
€408.11
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel ASTM A105 N Standard DN50 - 2'' | 131050SF | S1007379 |
€616.44
(excl. btw)
|
add to cart |
